1.Open the SE1_Screen and insert a Display near Breaker 52-02.
Display
2.Right-click this Display and select the Properties option. On the window that opens, select the Links tab.
3.In the Value property, use the AppBrowser to select, on Source column, the Discrete Measurement LocalRemote, on Measurements folder of Breaker 52-02. On the right, select the Value property and click Paste.

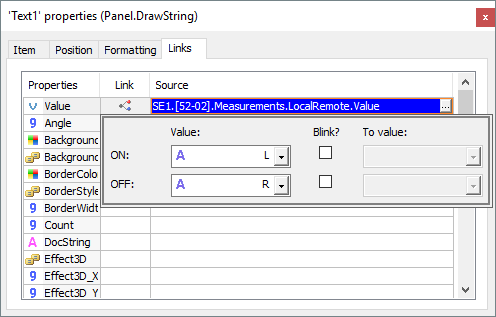

4.Configure the link as Digital and define its value according to the next figure.
Value property
5.Execute the application. Toggle the value of this Measurement between Local and Remote, and check if Display's text shows that information correctly.
CHALLENGE VIII |
On the Screen SE1_Screen, create a simple Display linked to the Value property of TOL Measurement (Oil Temperature). This Display must have the following features: •If the Measurement value is between 0 (zero) and 150, the Display's background color must be blue •If the Measurement value is between 150 and 300, the Display's background color must be red •If the Measurement value exceeds 300, the whole Display must blink |
