Configuring Properties

<< Click to Display Table of Contents >>

Configuring Properties

The GenericProtocol tab contains specific settings for this Driver.

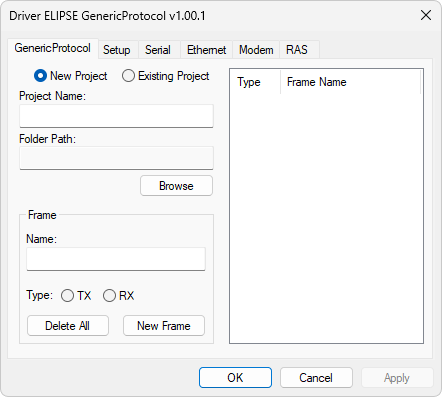

GenericProtocol tab

GenericProtocol tab

The available options on this tab are described on the next table.

Available options on the GenericProtocol tab

Option

Description

New Project

Allows creating a new project

Existing Project

Allows selecting an existing project file, in XML format

Project Name

Specifies a name for a project. This field is disabled when selecting the New Project option

Folder Path

Shows the directory where a project is saved

Browse

When selecting the New Project option, this option allows selecting a directory to save this new project. When selecting the Existing Project option, this option allows selecting a project file, in XML format

Name

Specifies a name for a frame

Type

Specifies a type for a frame. Possible values for this option are TX: Transmission frame or RX: Reception frame

Delete All

Deletes all frames from the current project

New Frame

Opens the Frame configuration window, described next, to create a new frame



To change the name of a registered frame in a project, right-click the name of a frame and select the Change Name option to open the window on the next figure.

Change Name window

Change Name window

To remove a registered frame in a project, right-click the name of a frame and select the Delete option. To edit a frame, double-click the name of a frame on the list.

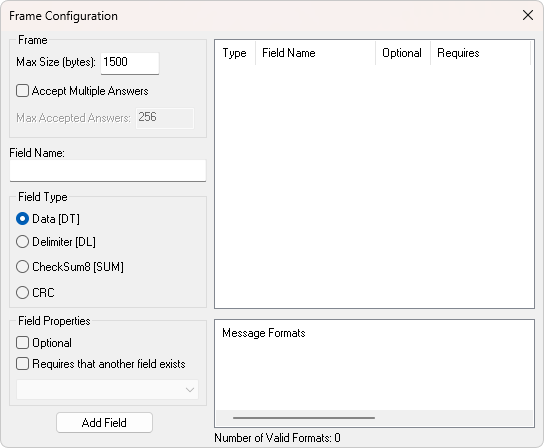

Frame Configuration window

Frame Configuration window

The available options on this window are described on the next table.

Available options on the Frame Configuration window

Option

Description

Max Size (bytes)

Indicates the maximum valid size, in bytes, for a frame. This value must be in the range between 1 (one) and 1500

Accept Multiple Answers

Enables the configuration of the maximum number of frames received and not read. These frames are stored until the older frames are deleted

Max Accepted Answers

Indica the maximum number of frames received and not read. This value must be in the range between 1 (one) and 256

Field Name

Name of a field

Field Type

Type of a field. Possible values for this option are Data [DT], Delimiter [DL], CheckSum8 [SUM], or CRC

Optional

Indicates whether this field is optional

Requires that another field exists

Indicates whether this field depends on the existence of another field

Add Field

Opens the Data Field Configuration window if the Field Type option was configured with the Data [DT] value, the Delimiter Field Configuration window if the Field Type option was configured with the Delimiter [DL] value, the CheckSum8 Field Configuration window if the Field Type option was configured with the CheckSum8 [SUM] value, or the CRC Field Configuration window if the Field Type option was configured with the CRC value



To change the name of a field registered in a project, right-click the name of a field and select the Change Name option to open the window on the next figure.

Change Name window

Change Name window

To remove a field registered in a frame, right-click the name of a field and select the Delete option. To edit a field, double-click the name of a field on the list. The Message Formats list shows the result of the configured frames, displaying up to 255 valid frames. The Number of Valid Formats option on this window's footer shows the number of valid paths in a frame.

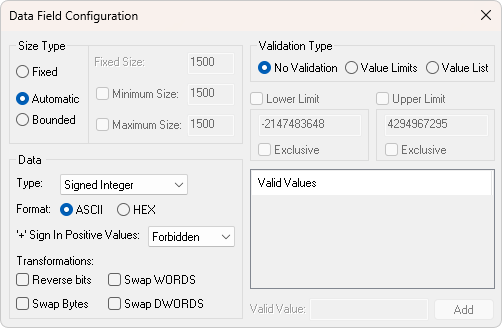

Data Field Configuration window

Data Field Configuration window

The available options on this window are described on the next table.

Available options on the Data Field Configuration window

Option

Description

Size Type

Indicates the size of a field. Possible values for this option are Fixed: Fixed size in bytes, Automatic: Variable size without limits, or Bounded: Size in bytes with the possibility of defining a minimum size and a maximum size

Fixed Size

Fixed size of a field, in bytes. This option is only available when selecting the Fixed value in the Size Type option

Minimum Size

Minimum size of a field. This option is only available when selecting the Bounded value in the Size Type option

Maximum Size

Maximum size of a field. This option is only available when selecting the Bounded value in the Size Type option

Type

Indicates how a received data must be interpreted. Possible values for this option are Signed Integer, Unsigned Integer, Decimal, or String

Format

Indicates the format for receiving data. Possible values for this option are ASCII: Text format or HEX: Hexadecimal format (Raw)

'+' Sign in Positive Values

Indicates the presence of a plus (+) sign for positive values when the reception format is equal to ASCII and the data type is a number. Possible values for this option are Optional, Mandatory, or Forbidden

Reverse bits

Applies a bit reversing on received data before processing

Swap WORDS

Applies a swapping of Word values on received data before processing

Swap Bytes

Applies a swapping of bytes on received data before processing

Swap DWORDS

Applies a swapping of DWord values on received data before processing

Validation Type

Indicates whether any additional validation must be performed on the received data. Possible values for this option are No Validation: No validation, Value Limits: Allows setting minimum and maximum limits for a received number, or Value List: Allows defining a list of valid number or String values, based on the data type selected in the Type option

Lower Limit

Minimum value of a field. This option is only available when selecting the Value Limits value in the Validation Type option. By default, the minimum value includes the typed value. To exclude it, select the Exclusive option

Upper Limit

Maximum value of a field. This option is only available when selecting the Value Limits value in the Validation Type option. By default, the maximum value includes the typed value. To exclude it, select the Exclusive option

Valid Value

Allows adding a valid value for the received field. The Valid Values list contains all valid values already registered



To remove a valid value, right-click a value on the Valid Values list and select the Delete option.

Delimiter Field Configuration window

Delimiter Field Configuration window

The available options on this window are described on the next table.

Available options on the Delimiter Field Configuration window

Option

Description

Delimiter

Field delimiter

Format

Format of a delimiter. Possible values for this option are ASCII: Delimiter in text format or HEX: Delimiter in hexadecimal format. NOTE: The ASCII option accepts spaces both in the beginning and in the end and the HEX option does not accept spaces and the 0x prefix must be omitted



CheckSum8 Field Configuration window

CheckSum8 Field Configuration window

The available options on this window are described on the next table.

Available options on the CheckSum8 Field Configuration window

Option

Description

Method

Indicates a calculation method for the checksum. Possible values for this option are XOR: Uses the Exclusive Or method, Modulo: Sums all bytes from the selected region and gets the rest of the division by 256, or Two's Complement: Sums all bytes from the selected region, inverts all bits from the result, and adds 1 (one)

Format

Indicates the format for receiving the data. The possible values for this option are ASCII: Hexadecimal in text format (0xFF represented as "FF") or HEX: Hexadecimal format (Raw)

Swap Nibble

Applies a four-bit permutation to the received data before processing

Start

Selects a frame field where the calculation of the checksum starts

End

Selects a frame field where the calculation of the checksum ends

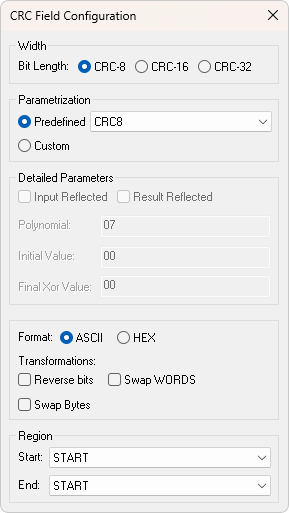

CRC Field Configuration window

CRC Field Configuration window

The available options on this window are described on the next table.

Available options on the CRC Field Configuration window

Option

Description

Bit Length

Indicates the size of a CRC (Cyclic Redundancy Check) code in bits. Possible values for this option are CRC-8: 8-bit size, CRC-16: 16-bit size, or CRC-32: 32-bit size

Predefined

Indicates a pre-defined type of CRC. Possible values for this option are CRC8, CRC8_8H2F, CRC8_CDMA200, CRC8_DARC, CRC8_DVB_S2, CRC8_EBU, CRC8_ICODE, CRC8_ITU, CRC8_MAXIM, CRC8_ROHC, CRC8_SAE_J1850, CRC8_SAE_J1850_ZERO, or CRC8_WCDMA

Custom

Allows customizing a type of CRC. Selecting this option enables the next options

Input Reflected

Reverts the received bytes

Result Reflected

Reverts the calculated CRC code

Polynomial

Polynomial value of the CRC code, in hexadecimal format without spaces and omitting the 0x prefix

Initial Value

Initial value of the Exclusive Or method of the CRC code, in hexadecimal format without spaces and omitting the 0x prefix

Final Xor Value

Final value of the Exclusive Or method of the CRC code, in hexadecimal format without spaces and omitting the 0x prefix

Format

Indicates the format for receiving a CRC. Possible values for this option are ASCII: Hexadecimal in text format (0xFF represented as "FF") or HEX: Hexadecimal format (Raw)

Reverse bits

Applies a bit reversing on the received CRC before processing

Swap WORDS

Applies a swapping of Word values on the received CRC before processing

Swap Bytes

Applies a swapping of bytes on the received CRC before processing

Start

Select the frame field where the calculation of the CRC code starts

End

Select the frame field where the calculation of the CRC code ends



NOTE

All windows automatically save their changes, except the main window to configure this Driver. In this case, click Apply to save in-memory changes and click OK to save all changes and close the window.
