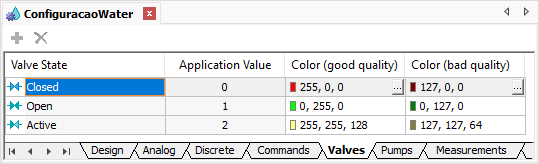

The Valves tab allows users to configure the colors of a Valve, according to its respective state. The tab to configure colors of Valve states is shown on the next figure.
Valves tab
The available columns to edit colors of Valve states are described on the next table.
Columns to edit colors of Valve states
Column |
Description |
|---|---|
Valve State |
Describes the state of a Valve. This is a read-only column |
Application Value |
Value displayed by a meter of Valve states when a device is in the respective state. This is a read-only column |
Color (good quality) |
Color displayed by a Valve on the diagram when that Valve indicates its status with good communication quality, that is, a Tag's Quality property is greater or equal to 192 |
Color (bad quality) |
Color displayed by a Valve on the diagram when that Valve indicates its status with bad communication quality, that is, a Tag's Quality property is less than 192 |
The colors of states and their respective qualities can be configured by script using the object returned by the ValveStateColors property of a Water Configuration object, according to the next table.
Configuration options of colors for Valve states
State |
Quality |
Default Color |
Description |
|---|---|---|---|
Closed |
Good |
Red or RGB(255, 0, 0) |
Corresponds to the ColorClosedGood property of a Valve State Colors object |
Closed |
Bad |
Maroon or RGB(127, 0, 0) |
Corresponds to the ColorClosedBad property of a Valve State Colors object |
Open |
Good |
Green or RGB(0, 255, 0) |
Corresponds to the ColorOpenGood property of a Valve State Colors object |
Open |
Bad |
Dark green or RGB(0, 127, 0) |
Corresponds to the ColorOpenBad property of a Valve State Colors object |
Active |
Good |
Yellow or RGB(255, 255, 128) |
Corresponds to the ColorActiveGood property of a Valve State Colors object |
Active |
Bad |
Olive or RGB(127, 127, 64) |
Corresponds to the ColorActiveBad property of a Valve State Colors object |
