Elipse E3 - SQL Server

Allows connecting to a SQL Server database containing tables from Elipse E3's, Elipse Power's, or Elipse Water's Storage or Historic. The configuration is performed on the window of the next figure.

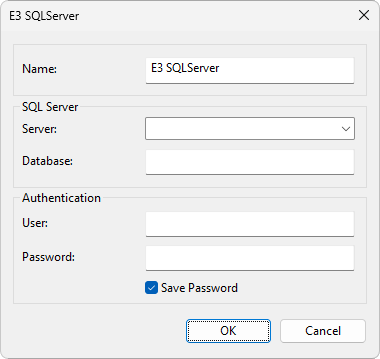

E3 SQLServer window

E3 SQLServer window

The available options on this window are described on the next table.

Available options on the E3 SQLServer window

Option

Description

Name

Name of the Connection

Server

Name of a SQL Server server

Database

Name of a database

User

Name of a user

Password

Password for the user

Save Password

Enables saving the informed password
