The Search Mode allows viewing values from points of Pens or executing an interpolation. The available options in this mode are described next.
Search - Panel - Previous
In this mode, users can view the timestamp, the value, and the name of the point before the mouse pointer.

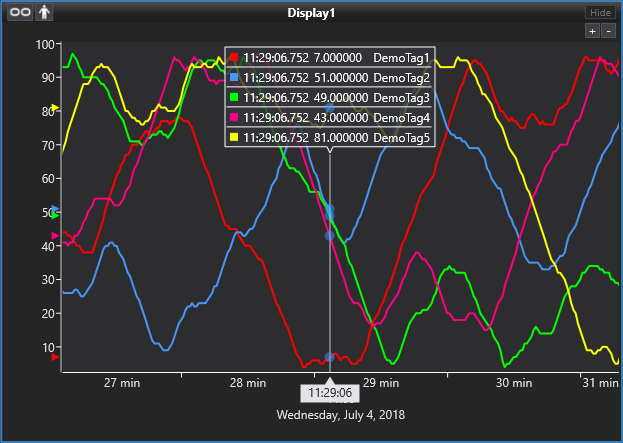

Example of a search using the Panel - Previous option
Search - Panel - Interpolated
In this mode, users can view the timestamp, the value, and the name of a point interpolated relative to the point before and after the mouse pointer.

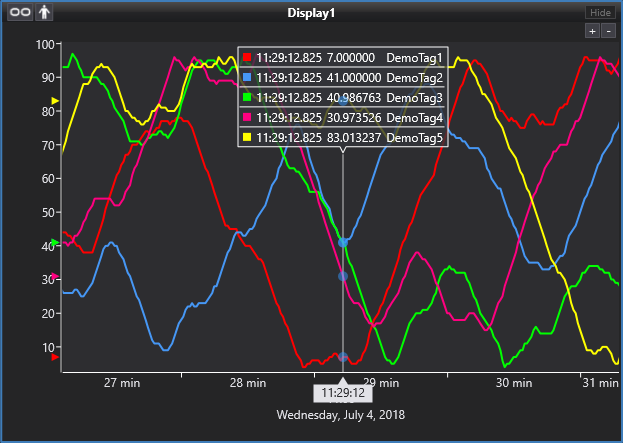

Example of a search using the Search - Panel - Interpolated option
Search - Label - Interpolated
In this mode, users can view the value of a point interpolated relative to the point before and after the mouse pointer.

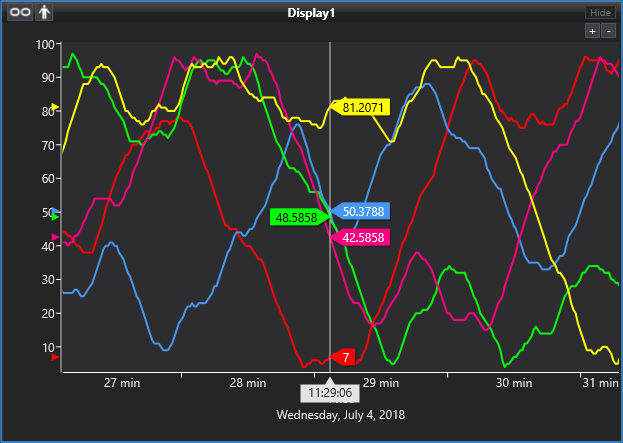

Example of a search using the Search - Label - Interpolated option
Search - Label - Nearest
In this mode, users can view the value of the nearest point to the mouse pointer.

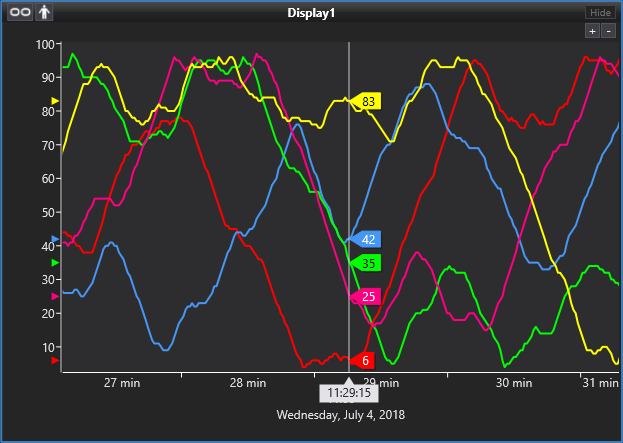

Example of a search using the Search - Label - Nearest option
NOTES |
•In Interpolated modes, if the near points do not have a value, the search is equivalent to the Nearest mode. •All modes have specific indications for null values or values with a quality different from Good. |
