To export the content of a Display to a file in CSV (Comma-Separated Values) format, click the Display area and select the Export to CSV option. The window on the next figure is opened.

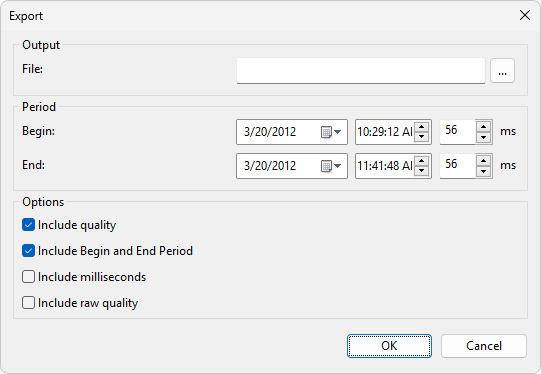

Export window
The available options on this window are described on the next table.
Available options on the Export window
Option |
Description |
|---|---|
File |
Allows indicating an output file for the export process. Click |
Begin |
Allows selecting the starting date and time to export |
End |
Allows selecting an ending date and time to export |
Include quality |
Allows including the quality of a Pen to export |
Include Begin and End Period |
Allows including a point before the period indicated in the Begin option and a point after the period indicated in the End option, if they exist |
Include milliseconds |
Allows including milliseconds in the indicated periods |
After configuring the export process, click OK. The window on the next figure is shown after exporting. Click Open Folder to open Windows Explorer on the selected directory for exporting, click Open to open the selected file in the default application for CSV files, or click Close to close this window.

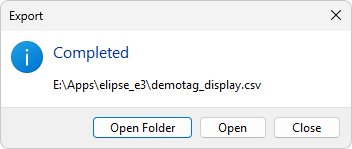

Export process successfully finished
