Transmission Line Segments are used to connect two Substations. A Transmission Line is a group of one or more Line Segments. To insert a new Transmission Line on a system, users must first insert a Line Segment. To do so, click Transmission Line Segment , select a Substation, and then drag the mouse pointer to another Substation.

To insert a Transmission Line, select all desired Line Segments and click Create Transmission Line with the Selected Line Segment(s) .

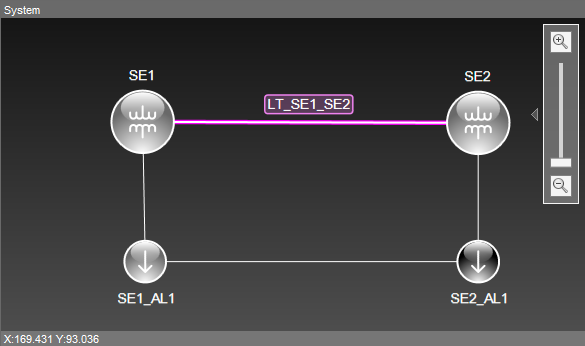

Line Segment and Transmission Line

Line Segments and Transmission Lines can be only created and viewed at System level. The description of the properties of this object can be found on the Elipse Power Reference and Scripts Manual.
