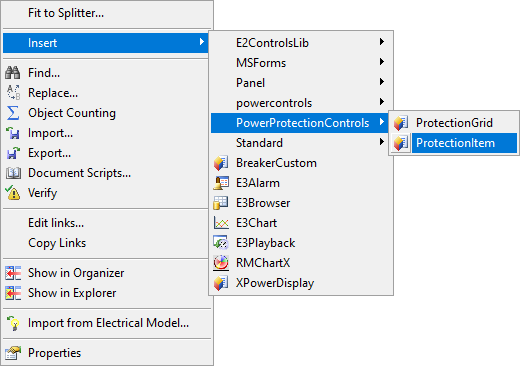

1.Right-click SE1_Screen and select the Insert - PowerProtectionControls - ProtectionItem item.

Insert ProtectionItem option

2.Place this object near Breaker 52-03.

Positioning a ProtectionItem

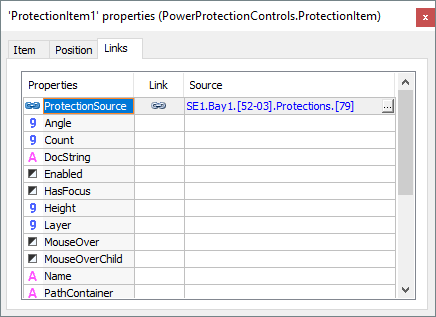

3.On this object's Properties Window, locate the ProtectionSource property and configure its Link with the expression "SE1.Bay1.[52-03].Protections.[79]".

ProtectionSource property

4.Execute this application and test this new functionality.

ProtectionItem at run time
