Challenge X

<< Click to Display Table of Contents >>



Challenge X

Create a "Guest" user who cannot send Commands, cannot write to Measurements, nor acknowledge alarms in this application



Notice that these three actions indicated in the challenge are written to server objects.

1.Open the window to configure users in Elipse Power Studio (on File - Users menu).

2.On Users tab, click New and create a user named "Guest".

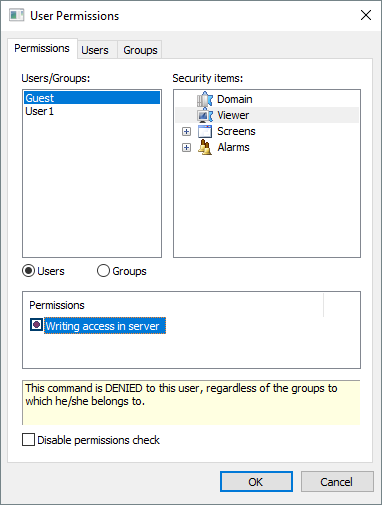

3.On Permissions tab, select this user and, on the list on the right, select the Viewer item.

4.Configure this user to not have writing access to the server.

Permissions tab

Permissions tab
