An Elipse Power Viewer is an Elipse Power's viewing environment. With an Elipse Power Viewer, users can watch the execution of applications created in Elipse Power Studio.
A WebViewer is an ActiveX component that causes Internet Explorer to behave as an Elipse Power Viewer, which enables viewing and controlling Elipse Power applications via Internet. Thus, users can view and interact with a plant floor process by using Internet Explorer, which can be installed in any computer on a network with access to E3 Server.
After installed, a WebViewer works exactly as an Elipse Power Viewer, downloading an application, such as Screens and bitmaps, to the local machine. All Elipse Power Viewer functionality, such as E3Chart and E3Alarm, is supported by a WebViewer.

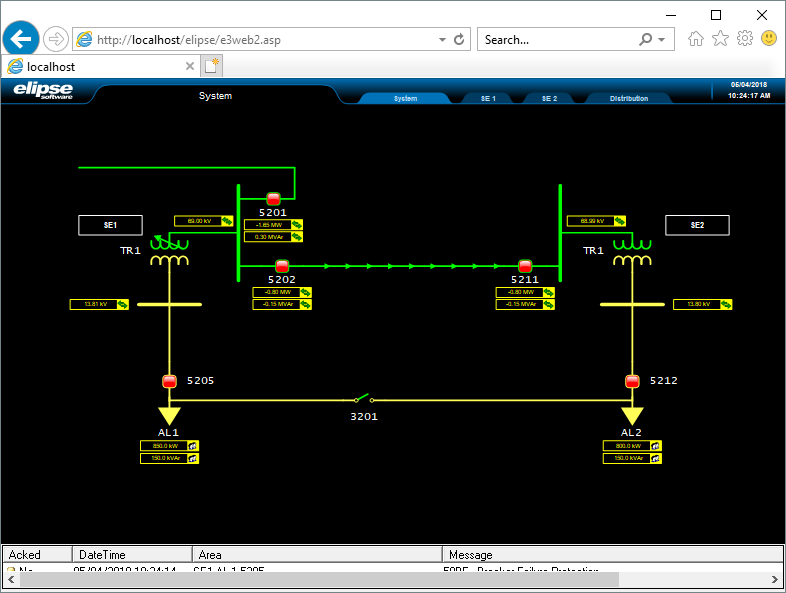

A WebViewer executing (viewing an application)
NOTE |
Both Elipse Power Viewer and WebViewer accept the same zoom options described on Zoom topic of chapter Screen and Screen Objects. In addition, drawing quality of Screens can be modified, at run time, by using both Elipse Power Viewer's and WebViewer's contextual menu, and selecting one of the options of the Quality (all screens) menu. For more information, please check Viewer's RenderQuality property on Elipse Power Reference and Scripts Manual. |
