Open Screen Pick

Let's implement navigation among application Screens. Each button on Menu_Screen must open its respective Screen on Frame's central area.

1.On the Menu_Screen, select the SE1 Command Button and, at the bottom, select the Scripts tab.

2.On the Click event, create a new Open Screen-type Pick.

3.In the Open Screen field, select the SE1_Screen item and, in the In Frame field, select the Central_Area item.

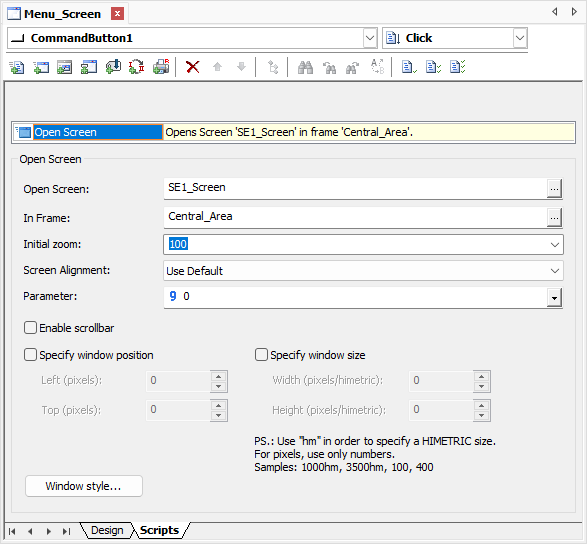

Open Screen Pick

Open Screen Pick

4.Configure the Events Command Button to open its respective Screen.
