The Local/Remote command template does not exist as a default in Elipse Power, so users must register it.

1.Select the Commands tab of the Power Configuration object.

2.Click Add and select the Discrete Command option. Configure the following properties:

•Name: LR

•Electrical Phase: -1 - epNone

•Description: Local/Remote Command

•Sorting: 1000

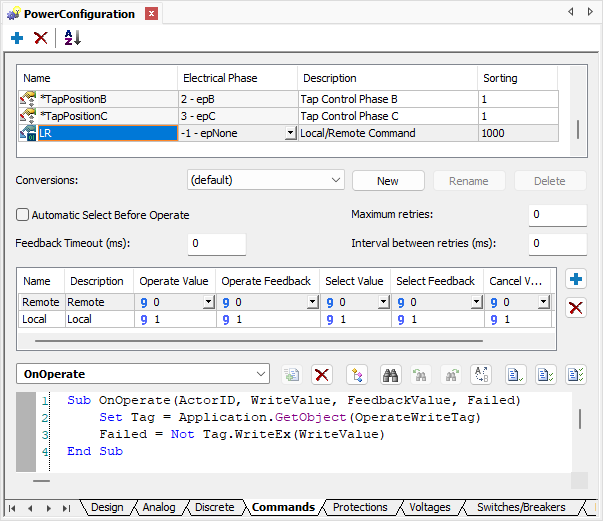

3.Click Adds semantic to create the Semantics, according to the next figure.

Creating Semantics

4.On Substation SE1, right-click Breaker 52-01 and select the Add - Commands option.

5.Add a Discrete Command on the Commands folder. Configure the following properties of this object:

•Name: cmdLocalRemote

•CommandType: LR, on the Type column

6.Add two Command Units to the cmdLocalRemote Command, "Remote" and "Local". Do not forget to configure the CommandName property of these Units.

7.On the Tag column select, using the AppBrowser, the SE1.[52-01].Measurements.LocalRemote.Operator item for Local and Remote Units.

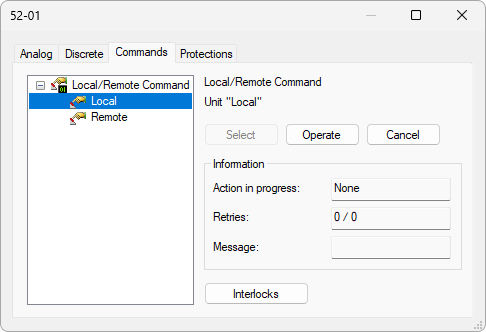

8.Execute this application and test this new Command.

Local/Remote Command
