Multiple |
In a Multiple Link, each row of a Link allows retrieving its value from a different source. The active source is selected according to the Link's main source value.
Each row contains an interval, the Min and Max properties, and the source for that interval, the Source property, which is a Simple Link.

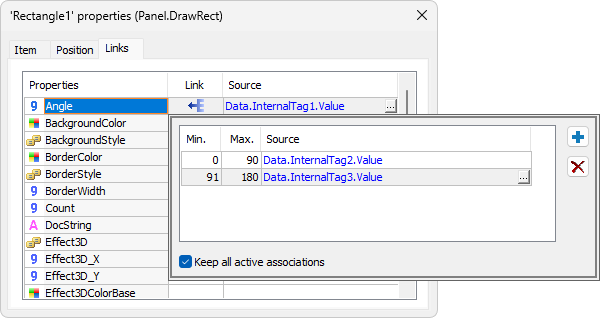

Multiple Link
The available options for this Link are described on the next table.
Available options for a Multiple Link
Option |
Description |
---|---|
Adds |
Adds a new row on the table |
Deletes |
Deletes the selected row from the table |
Min |
Specifies the minimum value on the source for a table row |
Max |
Specifies the maximum value on the source for a table row |
Source |
Specifies the source to be linked to the property when the value of the main source is between Min and Max limits |
Keep all active associations |
Keeps all table Links in Advise, or active, mode. This option corresponds to the AdviseAll property |
To use this resource, follow these procedures:
1.Right-click an object and select the Properties option.
2.Select the Links tab, click the Source column, and then select the Multiple Connection option.
3.Add rows to the table and then configure their respective Min., Max., and Source columns.
