1.Insert a Formula object in E3Training project.

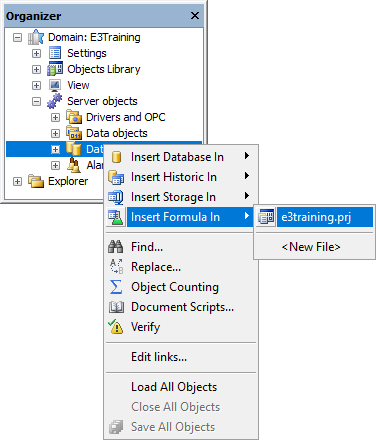

Insert Formula

2.Select in the Database field the Database object of the application and, in the Table field, type "TrainingFormula".

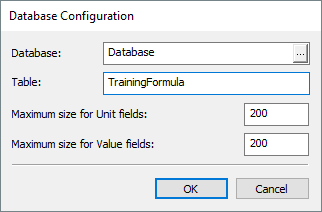

Configuration of Formula's Database

3.Name the object as "ColorFormula".

4.On the Templates tab, add three new Integer-type Templates: Red, Green, and Blue. For all these Templates, select 0 (zero) to 255 as their absolute limit.

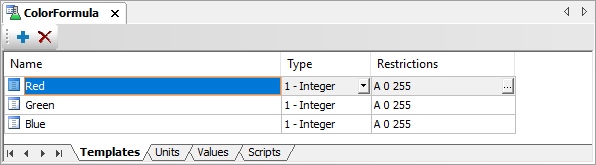

Templates

5.On the Units tab, select any row from Unit1 column and click Rename . Change the name of this Unit to "Tank1".

6.Click Add to add a new Unit, "Tank2".

7.Select, in these two Units, the path to each property of objects Tank1 and Tank2 on Data folder.

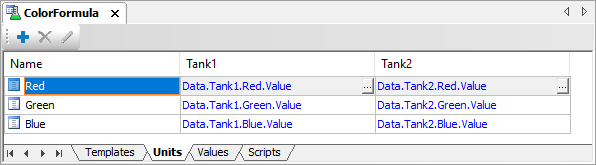

Configuration of Units

8.On the Values tab, add more Value Sets, filling the columns with the preferred values.

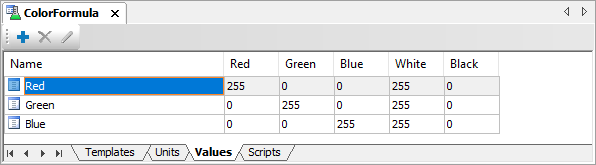

Configuration of Value Sets
