Elipse E3, starting with version 2.0, Elipse Power, and Elipse Water contain a tool called Tag Browser, which allows a Driver to help users creating and configuring Tags.

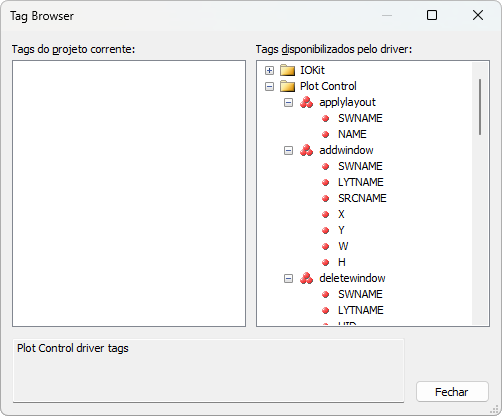

Tag Browser

The Tags from current project (Tags do projeto corrente) list displays Tags and folders already in the current project. The Tags available from driver (Tags disponibilizados pelo driver) list displays a tree with Tags provided by this Driver. To create a new Tag in an application, drag one of this Driver-defined Tags to a folder on the current directory. The Plot PlotControl Driver provides the following nodes on this tree view:

•An IOKit node that displays all Tags supported by IOKit library, grouped into the next categories:

•General: Tags for general use

•Modem: Tags for manipulating communication via modem

•Ethernet: Tags for manipulating communication via Ethernet network

•Parameters: Tags for configuring IOKit library parameters

•The Plot Control node contains a folder with a diversity of Block and PLC Tags for this Driver's functionality. Each one of these Tags is explained in the next topics.
