Version

Protocol version. Available options are 3.1, 3.1.1, or 5

Client ID

Name used by this client as an identifier for all other clients. There must not be another client connected to the same Broker with that name

User

Name of a user used in connection messages (ConnAck), if needed and allowed by a Broker

Password

Password used together with the user name

Read QoS

Indicates the QoS (Quality of Service) code used to request Tag subscriptions. Possible values are 0: No Confirm, 1: Confirm, or 2: Handshake. A Broker compares the requested QoS code with the QoS code originally published, then sending at least a compatible data

KeepAlive (s)

Time, in seconds, that a client sends a ping message in MQTT protocol (PingReq) to check whether a connection with a Broker is still active. The default value of this option is 5 (five) seconds

Receive Max

Available only in version 5 of MQTT protocol, defines how many QoS 1 (one) or 2 (two) messages can be received from a Broker simultaneously before being acknowledged

Max Packet Size

Available only in version 5 of MQTT protocol, defines the maximum size, in bytes, for MQTT packets

Use Topic Alias

Available only in version 5 of MQTT protocol. When selecting this option, a numeric identifier is used internally to replace a long topic, thus reducing the size of packets

Topic Alias Max

Available when the Use Topic Alias option is selected. Limits how many topics can be replaced by numeric identifiers during communication

Use Session Control

Informs whether this Driver must keep the status of the active session, that is, if a disconnection occurs and then a connection occurs, the QoS 1 (one) and 2 (two) messages sent by other clients can be recovered

Session Expiry Interval

Available only in version 5 of MQTT protocol, defines the time, in seconds, that a session remains stored on a Broker after disconnection

Resend Unanswered Subscriptions Timeout (s)

Informs the number of seconds to resend a subscription of an item if it did not receive the first value during the informed period

Max Simultaneous Subscription Requests

Maximum number of item subscription requests to be sent at each message

Error on Tags Response Mismatch

Informs whether this Driver must return an error for Tags whose message does not match the configured Template

Use Mosquitto Dynamic Security Integration

Enables integration of control or configuration of Mosquitto permissions, by using pre-defined MQTT messages, triggered by Tags

Use Elipse Agent Integration

Enables integration with Elipse Agent, a diagnostics tool for computers with Windows

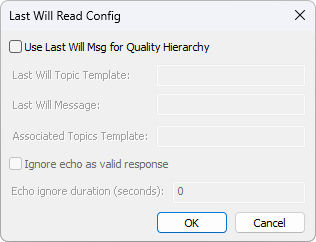

Last Will Read Config

Open the Last Will Read Config window, shown on the next figure, to configure the Last Will message received by this Driver

Use Last Will Msg for Quality Hierarchy

When selecting this option, all other settings on this page are enabled for editing, except the Echo ignore duration (seconds) option. If this Driver receives the message configured in the Last Will Message option on a topic that matches the one defined in the Last Will Topic Template option, all topics that match the value configured in the Associated Topics Template option are marked with a bad quality 20, 24, or 28 (invalid)

Last Will Topic Template

MQTT topic Template for the Last Will message

Last Will Message

Last Will message, such as "Goodbye"

Associated Topic Template

Template of MQTT topics associated to the Last Will message, that is, the topics that are marked with a bad quality

Ignore echo as valid response

When selecting this option, the Echo ignore duration (seconds) option is enabled for editing

Echo ignore duration (seconds)

This option defines a period, in seconds, during which a message received on a topic is considered an echo sent by a Broker when this Driver publishes to that topic. Thus, this message is disregarded as a valid communication, and the topics corresponding to the value of the Associated Topics Template option are not marked with a good quality (192)

QoS

Indicates the service level of messages published by this Driver. The available options are QoS 0: There is almost always a deliver (there may have zero or more deliveries), QoS 1: At least one or more deliveries, or QoS 2: Exactly one deliver

Deadband %

Value for the relative dead band applied when writing a numeric value to any Tag without Templates

Retain messages on Server

Selecting this option instructs a Broker to keep this client's messages together with their QoS, so that clients subscribing in the future can receive accumulated messages. When a new client subscribes, the last message of each topic, if available, must be sent to that client by the Broker

Publish Texts in UTF-8

Informs if Text-type Tags must have their values converted to the UTF-8 format before writing them. This avoids a wrong interpretation of messages with special characters by other clients

Enable Last Will

When enabling this option, the server must keep in memory a topic and a message for the client, which are sent to all other clients when there is an unordered disconnection, that is, without sending a Disconnect message

Topic

Topic or address sent during a disconnection (Last Will), such as "ELIPSE\goodbye"

Message

Message linked to a topic, such as "Goodbye"

Delay Interval

Available only in version 5 of MQTT protocol, defines the time, in seconds, that a Broker waits after an unexpected disconnection before publishing a Last Will message

Use Expiry Interval

Available only in version 5 of MQTT protocol, enables the Expiry Interval option

Expiry Interval

Available only in version 5 of MQTT protocol, defines the time, in seconds, after which the Last Will message is discarded by a Broker if it has not been delivered yet

Apply local timezone to timestamps

When this option is selected, the received timestamps are converted to the timezone used by the operating system. Otherwise, the received timestamps are displayed in UTC timezone

Template Name

Informs the name of a Template. Templates with the same name are not allowed

Data Format

Declares the format of a Template's message. The available options are JSON, CSV, or XML. The JSON format is preferred for use with MQTT, because it allows defining any type of data structure with less bytes

Add

Adds a Template to the list of Templates

Edit

Opens a window for editing the selected Template

Delete

Deletes the selected Template from the list of Templates

Save

Confirms all changes and closes this window

Cancel

Discards all changes and closes this window

Syntax

Informs the syntax of a message, in the selected format (JSON, CSV, or XML) together with the keywords used during the process of replacing them by timestamps, qualities, or values. For more information, please check topic Template Syntax

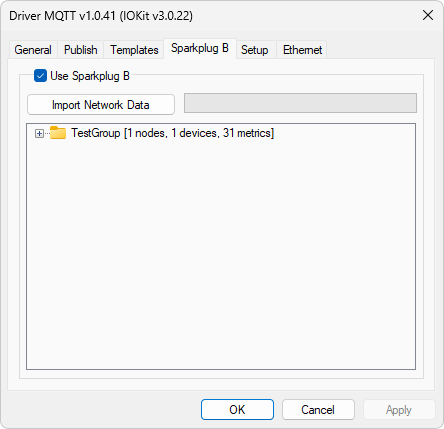

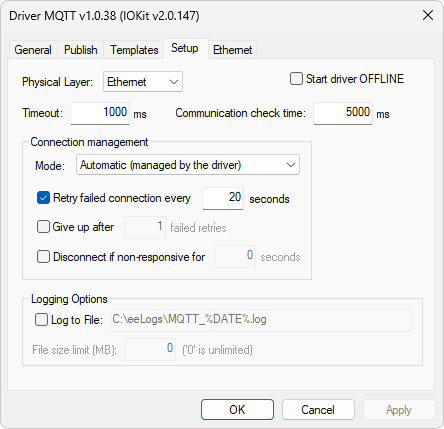

Start driver OFFLINE

Select this option for this Driver to start in Offline mode or stopped. This means that the Ethernet interface is not created until users configure this Driver in Online mode by using a Tag in an application. This mode enables a dynamic configuration of the Ethernet interface at run time

Retry failed connection every n seconds

Select this option to enable a connection retry of this Driver in an n interval, in seconds. If the Give up after n failed retries option is not selected, this Driver keeps retrying until the connection is established, or until the application is stopped

Give up after n failed retries

Enable this option to define a maximum number of connection retries. When the specified number of consecutive connection retries is reached, this Driver goes to the Offline mode, assuming that a hardware problem was detected. If this Driver establishes a successful connection, the number of retries is zeroed. If this new connection is lost, then the counter of retries starts at zero

Log to file

Enable this option and configure the name of the file where logs are written. Log files can be large, therefore use this option for short periods of time, only for test and debugging purposes. In case of using the %PROCESS% macro in the name of the log file, it is replaced by the identifier of the current process. This option is particularly useful when using several instances of the same Driver in Elipse E3, Elipse Power, or Elipse Water, thus allowing each instance to generate a separate log file. For example, when configuring this option with the value "c:\e3logs\drivers\mqtt_%PROCESS%.log", it generates a file c:\e3logs\drivers\mqtt_00000FDA.log for the 0FDAh process. Users can also use the %DATE% macro in the file name. In this case a log file per day is generated, in the format aaaa_mm_dd. For example, when configuring this option with the value "c:\e3logs\drivers\mqtt_%DATE%.log", it generate a file c:\e3logs\drivers\mqtt_2005_12_31.log on 12/31/2025 and a file c:\e3logs\drivers\mqtt_2026_01_01.log on 01/01/2006. Analogously, the %DATE_HOUR% macro generates a log file per hour, in the format aaaa_mm_dd_hh

File size limit (MB)

Configure the size limit of the log file, in megabytes. A value equal to 0 (zero) means that there is no size limit for the log file

Use SSL

When selecting this option, the SSL (Secure Sockets Layer) protocol is used for a secure connection with a Broker. The SSL Settings is enabled to configure the certificates

SSL Settings

Opens the SSL Settings window to configure the certificates, shown on the next figure

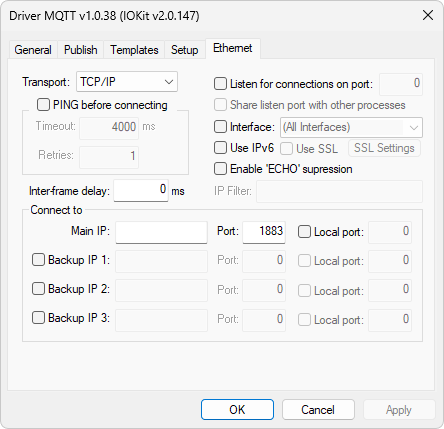

Main IP

Type the IP address of a remote device. Users can use either an IP address separated by dots or a URL. For a URL, this Driver uses the available DNS service to map that URL to an IP address, such as "192.168.0.13" or "Server1"

Port

Type the TCP/IP port of a remote device, between 0 (zero) and 65535

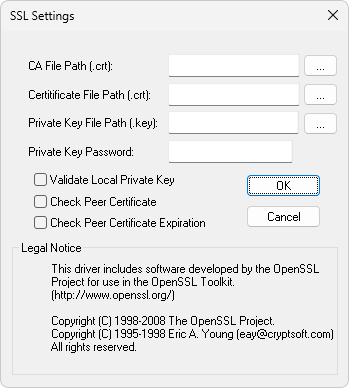

CA File Path (.crt)

Name and path of a file for the Certificate of Authority (CA). Click to select a file

Certificate File Path (.crt)

Name and path of a file for the client's SSL Certificate. Click to select a file

Private Key File Path (.key)

Name and path of a file with private keys for the client's SSL Certificate. Click to select a file

Private Key Password

Password of the private key, if applicable

Validate Local Private Key

Enables or disables validating the file defined in the Private Key File Path (.key) option

Check Peer Certificate

Enables or disables checking the client's SSL Certificate

Check Peer Certificate Expiration

Enables or disables checking the expiration date of the client's SSL Certificate
